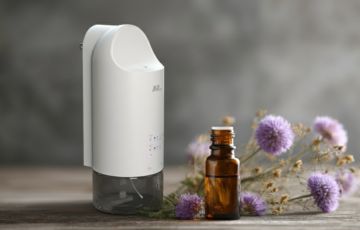

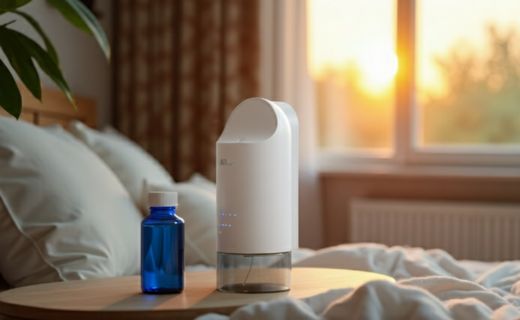

AP H705 Smart Aroma Diffuser – Professional Scenting Solution with Light Sensor
The AP H705 Aroma Diffuser is a compact, plug in scenting device designed for continuous and efficient fragrance dispersion in areas up to 25 m². Equipped with a 160 ml refillable bottle and four adjustable diffusion grades, it delivers consistent atomization performance with low energy consumption. The unit features three operating modes—12 hour cycle, 24 hour continuous mode, and Smart light sensor mode that activates diffusion only when ambient light is detected. Its simple two button interface, integrated buzzer feedback, and clear indicator lights ensure intuitive operation. Built with durable plastic materials and designed to remain upright for optimal performance, the diffuser supports easy installation, straightforward bottle replacement, and routine cleaning to maintain strong mist output. Safety protections, troubleshooting guidance, and viscosity recommendations further ensure reliable long term use in hotels, offices, restrooms, aisles, and retail environments.
Intelligent Light Sensor (Smart Mode)
Features a built-in light sensor that automatically activates the device in lit environments and pauses in the dark to save oil.
Dual Time Cycles
Choose between a 12-hour cycle or continuous 24-hour operation to suit your business hours.
4-Level Intensity Control
Precision-tune the scent concentration with four adjustable grades (G1-G4) to match the size and airflow of your space.
Silent & Efficient
Operating at just 1.6W, it provides powerful coverage of up to 25m² (75m³) without the noise of traditional air fresheners.
Minimalist Design
Compact and sleek, it fits seamlessly into any decor, from restrooms to high-end lobbies.
Technical Specifications
| Feature | Details |
|---|---|
| Model | AP H705 |
| Dimensions | 71.5 * 90.3 * 181.5 mm |
| Oil Bottle Capacity | 160ml |
| Input Voltage | AC 100V - 240V (50/60Hz) |
| Power Consumption | 1.6W |
| Coverage Area | 25m² / 75m³ / 2650ft³ |
| Net Weight | 236g |
| Material | High-grade Industrial Plastic |
Smart Operating Modes
- The AP H705 offers flexible settings to ensure your space always smells fresh:
• 12h Mode: Operates on a cycle of 12 hours ON and 12 hours OFF.
• 24h Mode: Continuous operation for 24-hour fragrance.
• Smart Mode: Automatically senses ambient light. It works when there is light and pauses when the lights are turned off, making it ideal for retail stores and offices.
Concentration & Consumption Table
| Grade | Work Time | Stop Time | Oil Consumption (g/h) |
|---|---|---|---|
| G1 (Low) | 15s | 285s | 0.07 |
| G2 (Med) | 15s | 135s | 0.13 |
| G3 (High) | 15s | 85s | 0.19 |
| G4 (Max) | 15s | 60s | 0.25 |
Easy Installation & Maintenance
Unscrew:
the oil bottle from the bottom of the machine.
Fill:
with your favorite essential or fragrance oil.
Screw:
the bottle back securely.
Plug:
into the power socket and select your preferred mode.
Pro-Tip: Cleaning for Longevity
To keep your diffuser running perfectly, we recommend cleaning the system once a month or when changing fragrance types:
• Fill the empty bottle with a small amount of industrial alcohol.
• Run the machine for 5 minutes to clear the atomizing nozzle.
• Wipe clean and refill with oil.
Important Safety Warnings
1- Keep it Upright:
Always keep the machine vertical. Tilting or lying the machine flat will cause oil to leak and damage the internal electronics.
2- Optimal Conditions:
Use in environments with standard humidity and temperature (Optimal: 25°C).
Ideal Applications
1- Hospitality:
Hotel Lobbies & Corridors.
2- Corporate:
Meeting Rooms & Executive Offices.
3- Commercial:
Brand Stores & Showrooms.
4- Public Spaces:
Luxury Restrooms & Aisles.
