AP O101 Smart Aroma Diffuser

The AP O101 Aroma Diffuser is a compact, wall mountable scenting device designed for efficient fragrance distribution in spaces up to 30 m². Equipped with a 100 ml bottle and a precision atomizing head, it operates in both USB power mode and battery mode, offering flexible installation options. Users can connect via Bluetooth through the Scent Marketing app to set working periods, adjust diffusion intensity across 10 concentration grades, and manage device settings remotely. Built with durable plastic and acrylic materials, the diffuser ensures stable performance when kept upright and includes safety features such as password protection, reset functions, and maintenance alerts. Its low consumption atomization system delivers consistent scent output, while the detachable components allow for easy cleaning and oil replacement.

Technical Specifications

Feature Details
Model AP O101
New Weight 148 * 58 * 158 mm
Bottle Capacity 100 ml
Coverage 30m² / 90m³ / 3200ft³
Input Voltage USB 5V ⎓ 0.3A MAX
Power 1.5W
Material High-quality Plastic & Acrylic
Included Accessories Essential oil bottle, security key, mounting screws, manual, mounting bracket, and Type-C cable.

Bluetooth App Instruction

Control your environment remotely using the ``Scent Marketing`` app.
backgrond-pic

Download

Search for "Scent Marketing" in the Google Play Store or Apple App Store.

backgrond-pic

Preparation

Ensure your mobile phone’s Bluetooth and Location services are turned ON.

backgrond-pic

Connection

Open the app, search for the device, and connect.

backgrond-pic

Security

1- The factory default password is 8888
2- You can amend the password in the "Device Control" settings.
3- If the password is forgotten, press the physical Reset Buttondevice to restore factory settings.

Installation Guide

1

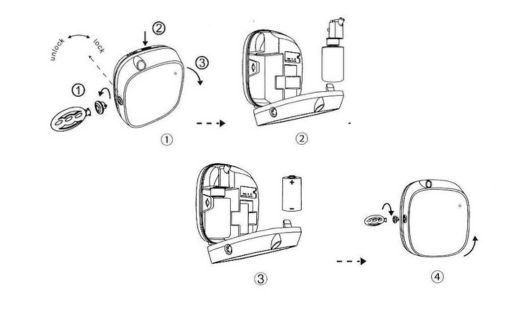

Device Setup

1- Unlock: Insert the key, twirl to "unlock," and pull it out. Press the top button and push the cover forward.
2- Oil Assembly: Tightly connect the atomizer head to the fragrance bottle and install them into the machine.
3- Power: Choose between Power Mode (Plugged in) or Battery Mode.
note: On the first connection, please wait about 4 minutes for the control board to charge/activate.
4- Secure: Close the cover and use the key to lock the device.

2

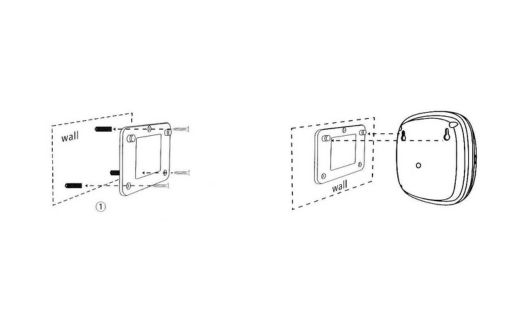

Wall Mounting

1- Method A (Recommended): Drill the 3 included screws into the wall and hang the machine.
2- Method B (3M Adhesive): Use only on clean, flat tiles or wood. It is highly recommended to secure the edges with sealant to prevent the device from falling.

Concentration & Consumption (Working Grades)

Grade Work Time Stop Time Consumption (g/h)
G1 3s 900s 0.04
G2 3s 810s 0.05
G3 3s 720s 0.06
G4 3s 630s 0.07
G5 3s 540s 0.08
G6 3s 450s 0.013
G7 3s 360s 0.19
G8 3s 270s 0.24
G9 3s 180s 0.30
G10 3s 90s 0.35
  • Note: 100ml of oil can provide 6300–6700 sprays under normal conditions.

Maintenance & Cleaning

To ensure longevity, clean the device when changing essential oils or if the mist becomes weak.

Step 1:

Pull out the atomized head and remove the bottle.

Step 2:

Fill a container with industrial alcohol and soak the atomized head and empty bottle for 5–10 minutes.

Step 3:

Air dry both parts before reassembling.

Step 4:

Reset Oil Level After cleaning/refilling, turn on the unit and hold the SET button for 3 seconds to reset the oil level indicator.

Safety Warnings

Troubleshooting

Breakdown Potential Solution
Does not diffuse Check if it is currently in a "Non-Working Period" set in the app. Verify if the air pump or tube is loose.
Weak diffusion The atomizing core may be blocked. Clean with alcohol. Check if the gasket is damaged or loose.
Oil spill/sprinkle Ensure the bottle is tightened. Ensure the machine is vertical (not tilted).
Abnormal noise The air pump may be loose or damaged. Ensure it is securely fastened.

Need further assistance?

Contact our customer support team or visit our video tutorials section for more help.
